Adding a Baggage Door

Disclaimer

This page is not necessarily meant to be a step-by-step instruction guide. The modifications below were done years ago. I don't remember part numbers, suppliers and other details. You should not attempt to replicate any of these mods unless you possess the inginuity to pull it off on your own.


Our Shadow Cruiser T-160 had just one externally accessible storage space, which is under the street-side rear bunk. The curb-side front dinette bench contains the trailer's other large storage space. But that space was only accessible from inside and required a cumbersome cushion and hatch to be moved out of the way. I wanted access from outside.

I purchased an off-the-shelf 11" x 18" baggage door. I believe this is the smallest off-the-shelf door that one can buy. However, a larger door would not have worked because the awning arm is in the way. Ideally I would have put the door forward of the awning arm, but I was afraid I'd hit a bunch of studs and maybe the clearance light wiring. Aft of the awning arm seemed like a safer bet.

The door I ended up with was "colonial white". I think I should have special ordered "polar white". In any event, I hit it with some gloss white from a rattle can and it matched up pretty well. If you paint your door, don't forget to first peel the protective film from the door panel. I also failed to realize that the door doesn't include the white vinyl insert trim. That's ordered as a separate part.


Here's the door out of the box just resting on the awning arm for some perspective. It's the wrong shade of white and there's no vinyl insert trim.

First I drilled some holes through the inside wall and probed the wall cavity with a coat hanger. I found a vertical stud near the awning arm and decided to make that my forward boundary. The dinette bench frame would be my upper boundary.

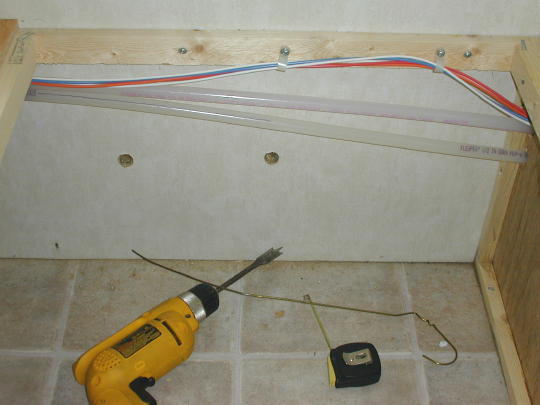

Initial inside holes for probing the wall.

I drilled two small holes from inside out along the dinette bench frame. I drilled another small hole by the vertical stud. These three holes served as outside reference marks for tracing the door opening. Next I used a small cutoff disk in my Dremel to cut away a section of the exterior molding. Then I held the door frame against my reference holes and traced the opening.

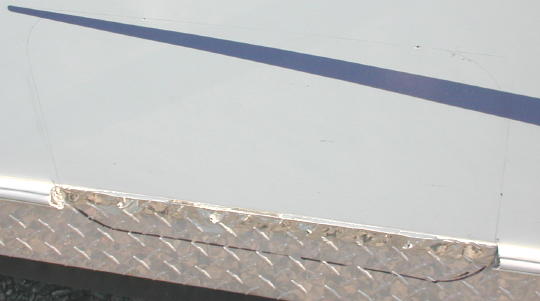

The exterior molding has been cut away and the door frame opening traced.

I taped off the outside wall around my trace and cut the opening with a jigsaw and a fine-tooth blade (being careful to avoid the inside water lines and wires). I discovered I had studs on three sides of my opening. I framed the forth side with ¾" stock and Gorilla Glue.

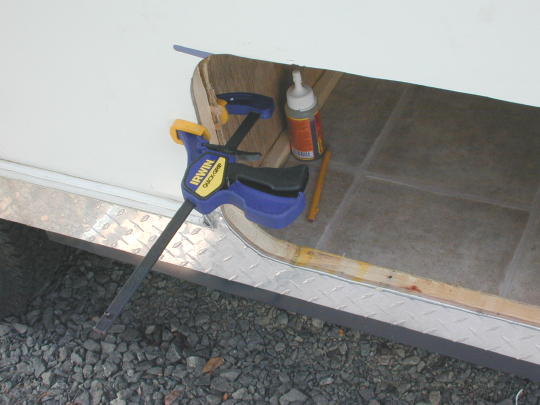

Framing the forth side of the opening.

The water lines to the galley were going to be in the way. I drilled a new hole above the existing lines. Then I connected all the holes with a hacksaw blade. Cutting the slot was actually pretty easy. By removing some galley drawers I was able to grab both ends of the saw blade and guide my cut with a pull-pull motion.

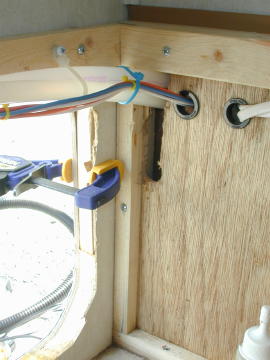

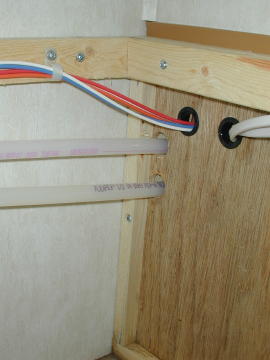

Water lines before and after relocation.

Next I test fit the door and trimmed back the molding a little more.


The molding is trimmed back and the door is ready for installation.

I installed the door with stainless steel screws and ProFlex caulk. I also installed a door catch and finished up with the vinyl insert trim.

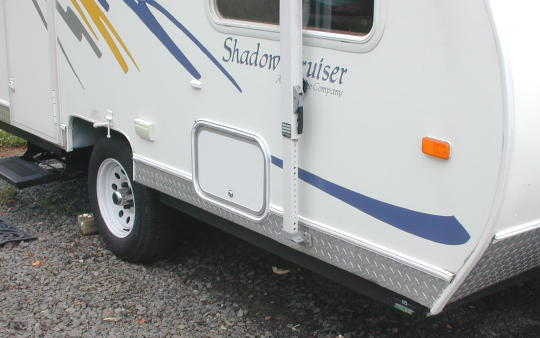

The finished door. Note the door catch above the left edge of the door.


At last I have easy access to the dinette bench storage.

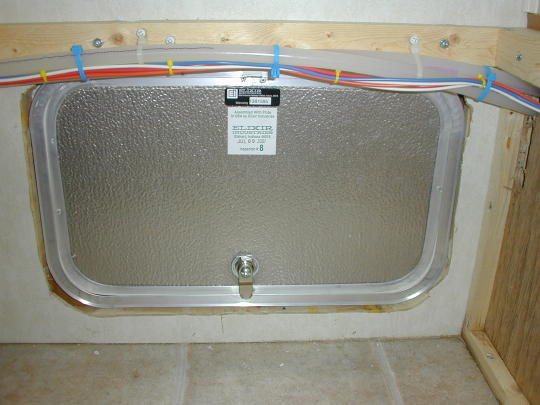

It's kind of ugly from the inside, but that's okay.

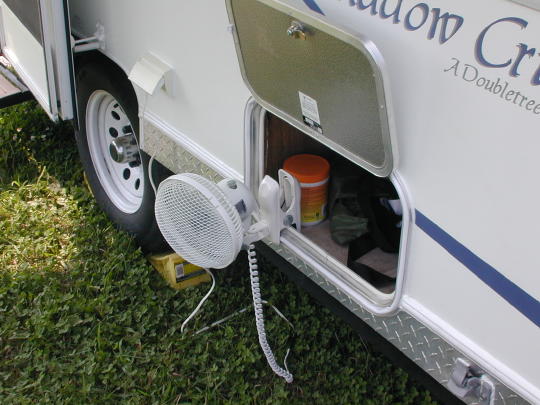

The hatch also makes a good place to clip our oscillating fan while sitting under the awning on hot days.
